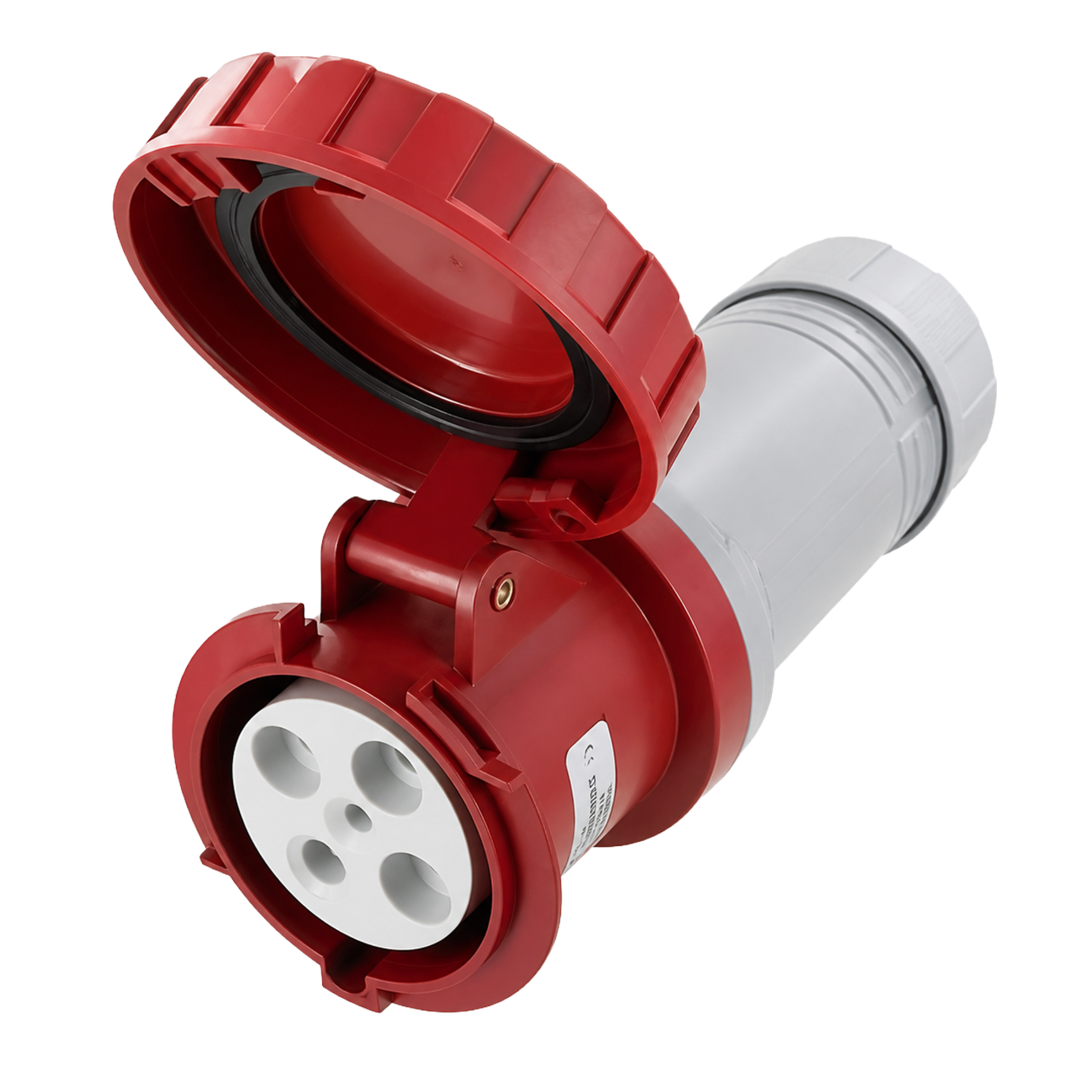

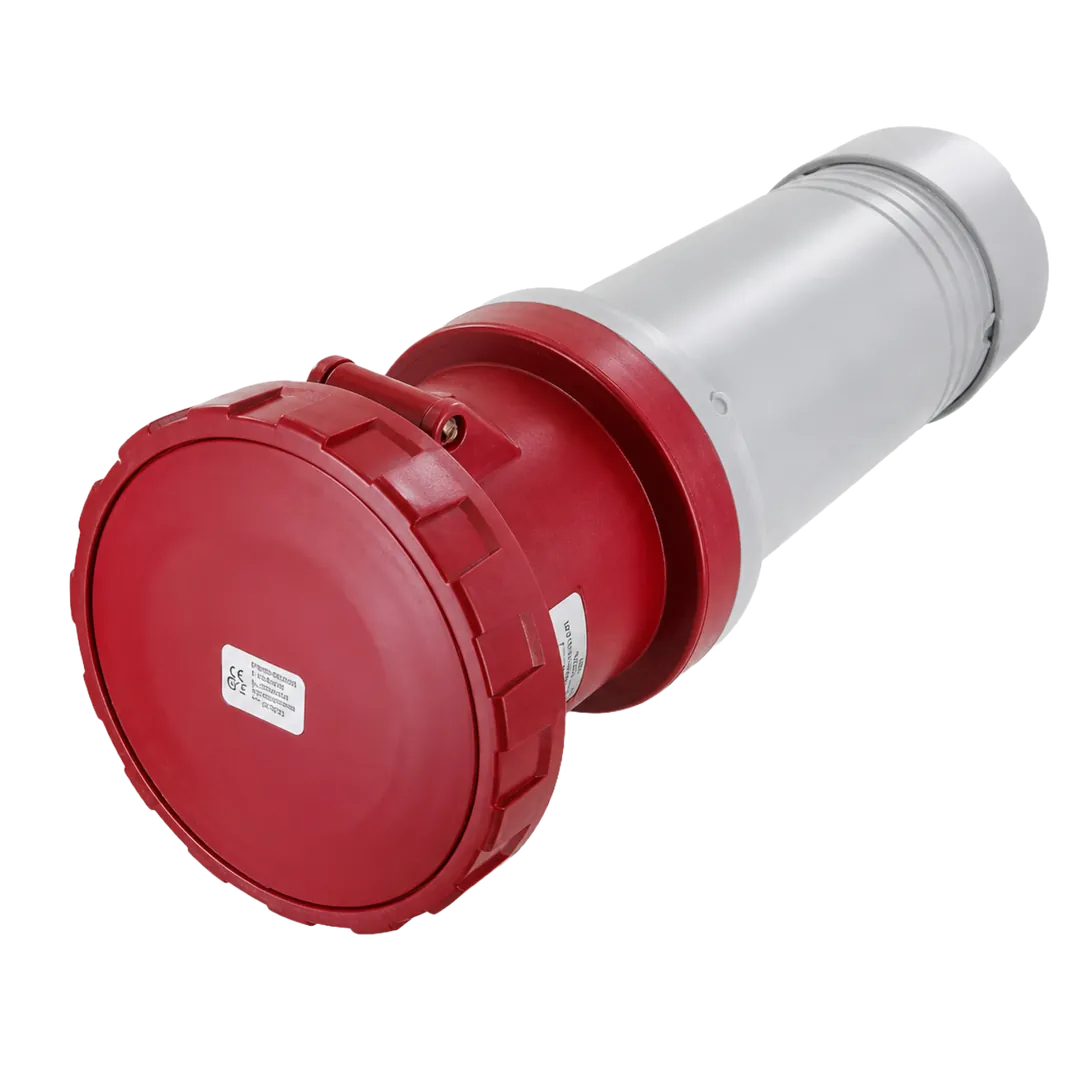

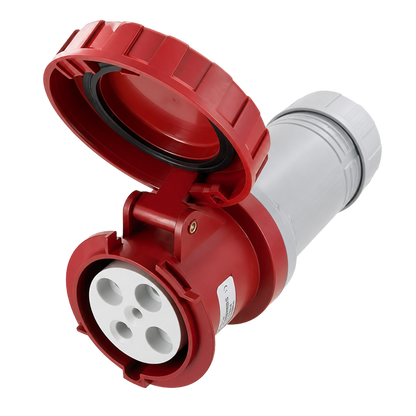

Connector or Female, 480V 100A 3P 4W IP67, SCM4100C7W SCAME IEC60309 Watertight Weatherproof

NORMALLY USED to CONNECTIONS with 480V 3-phase without Neutral
EQUIVALENT TO:

Hubbell HBL4100C7W
Bryant 4100C7W and
Menneke ME4100C7W

MAKES COUPLING WITH:

Plug SCM4100P7W and Inlet SCM4100B7W
This connector SCM4100C7W is compatible with Hubbell 4100P7 plug, but not compatible with Hubbell Inlet 4100B7

 TECH  DATA:

Plug & Connector: .. Commercial series                                    PIN & SLEEVE Series
Mounting version: …... PORTABLE
Rated current: …..….... 100A
Poles: …………….............. 3P 4W
Hour position: ….…....... 9h
Rated voltage: ............... 480V
Colour: ................................ RED
Material: ............................ THERMOPLASTIC
Protection degree: ....... Watertight
Protection degree IP: .. IP67
Types available outlets: STRAIGHT
Cable outlet: ..................... CABLE GLAND

STANDARDS AND LAWSUL 1682 [American Standard] Plugs, Receptacles, and Cable Connectors of the Pin and Sleeve Type and MIL-C-5756C: 600-volt heavy duty, portable, power, single and multiconductor, electrical cable for severe flexing service IEC 60309-1 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements IEC 60309-2 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories UL 486E [American Standard] Equipment wiring terminals for use with aluminum and/or copper conductors CSA C22.2 No. 182.1 (1988) [Canadian Standard] Industrial Locking Type, Special Use Attachment Plugs, Receptacles, and Connectors, Wiring Products CSA C22.2 No. 65-93 [Canadian Standard] Wire connectors wiring products DIRECTIVE LOW VOLTAGE 2014/35/UE [European Directives] Low Voltage Directive
