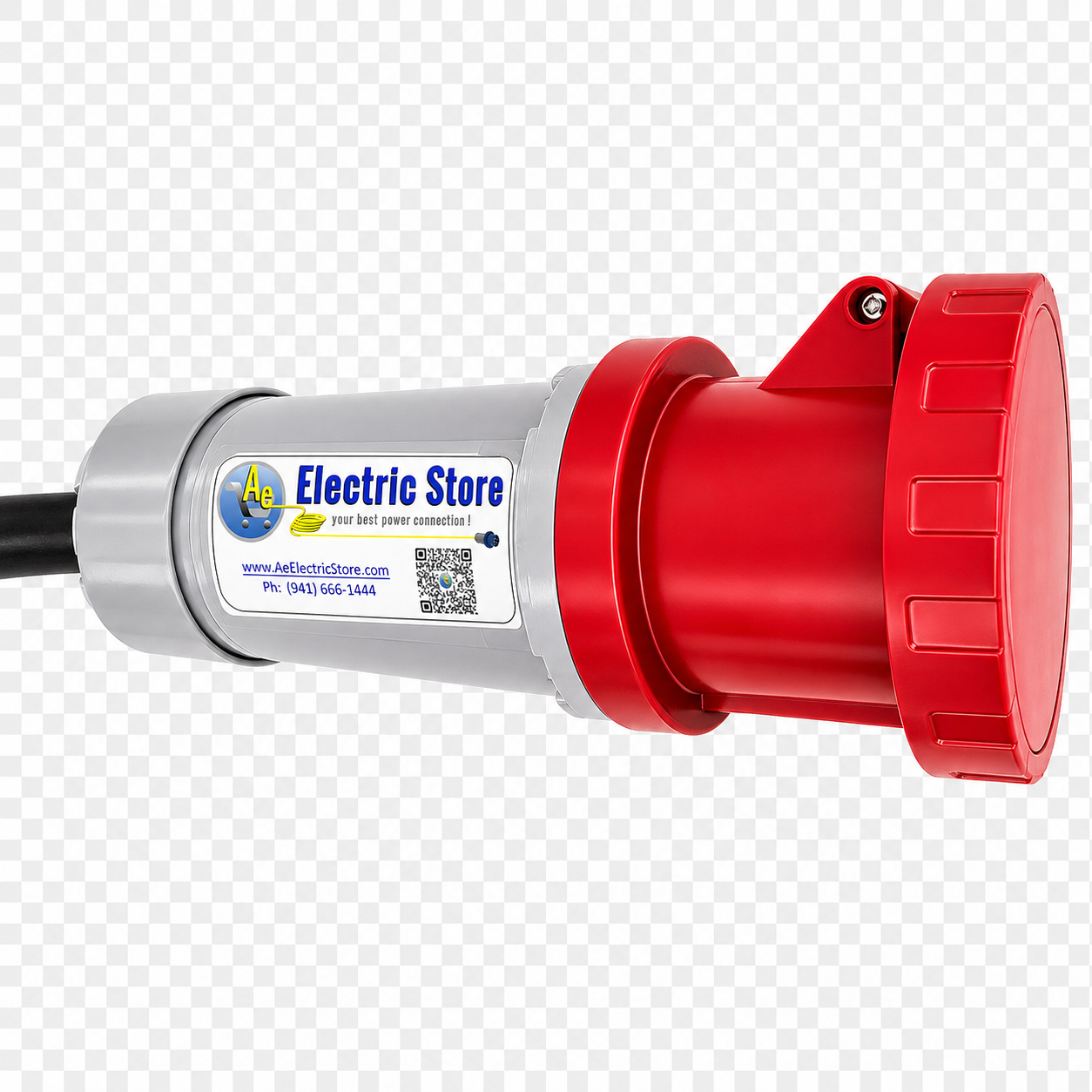

Adapter or Pigtail, Plug 208V 100 Amp 3-Phase Male 5pin to Connector 480V 100Amp 3-Phase Female 4pin, IP67, IEC60309 Watertight Weatherproof

NORMALLY USED to CONNECT a Multivoltage Input Frequency Converter or a Multivoltage Input Transformer to 208V Three-phase.
This adapter only allows to take 208V 3-phase power through a 480V 3P/4W connector, "without having to change the plug at the end of the shore power cord".
IMPORTANT:
This adapter is designed for connection or pinout compatibility only.
It does not convert voltage or frequency.
Ensure that both, power source and equipment, are electrically compatible before use.
WHAT DOES THIS ADAPTER INCLUDE ?

MALE:        208V  3-phase 4P/5W - 5 PIN
FEMALE:    480V  3-phase 3P/4W - 4 PIN
LENGHT:    5 feet (total)

MAKES COUPLING WITH:

Receptacle SCM5100R9W (or equivalents) on one side and
Plug SCM4100P7W (or equivalents) on the other side

TECH  DATA:

Plug & Connector: .. Commercial series                                    PIN & SLEEVE Series
Mounting version: …... PORTABLE
Rated current: …..….... 100A
Poles: …………….............. 4P 5W to 3P 4W
Hour position: ….…....... 9h to 7h
Rated voltage: ............... 250 and 480V
Colour: ................................ BLUE (Male) and                                           RED (Female)
Material: ............................ THERMOPLASTIC
Protection degree: ....... Watertight
Protection degree IP: .. IP67
Types available outlets: STRAIGHT
Cable outlet: ..................... CABLE GLAND

STANDARDS AND LAWS
UL 1682 [American Standard] Plugs, Receptacles, and Cable Connectors of the Pin and Sleeve Type and MIL-C-5756C: 600-volt heavy duty, portable, power, single and multiconductor, electrical cable for severe flexing service IEC 60309-1 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements IEC 60309-2 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories UL 486E [American Standard] Equipment wiring terminals for use with aluminum and/or copper conductors CSA C22.2 No. 182.1 (1988) [Canadian Standard] Industrial Locking Type, Special Use Attachment Plugs, Receptacles, and Connectors, Wiring Products CSA C22.2 No. 65-93 [Canadian Standard] Wire connectors wiring products DIRECTIVE LOW VOLTAGE 2014/35/UE [European Directives] Low Voltage Directive
