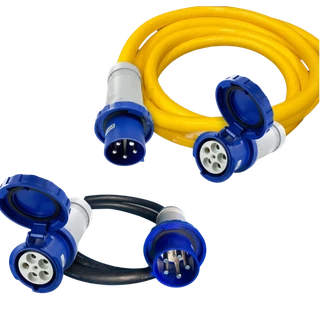

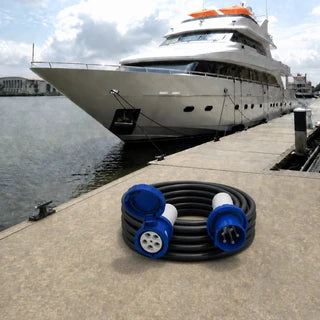

120/208v 3-Phase plus Neutral 100 amp Custom Shore Power Cord Set or 100A Dock Extension Cord, Yellow STOW #2/5 or Black SOOW #2/5 MOD 203XX

NORMALLY USED to CONNECTIONS with 120V/208V Three phase with Neutral 5 PIN - 4P/5W

STOW #2/5, SOOW #2/5 and SO #2/5 Cord belong to the same family of temporary cables or portable extensions, with some differences in terms of resistance to abrasion or oil.

Connector (female) is compatible with Hubbell 5100P9 plug, but not compatible with Hubbell Inlet 5100B9

All orders or purchases of CUSTOM MADE shore power cords are final sales and RETURNS are NOT ACCEPTED under any circumstances.

TECH  DATA :
CORD
* Custom length (20, 25, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120 ...ft)
* Rated current 100 Amp - #2/5
* 4 poles, 5 wires copper conductors (4P 5W)
* Water and weather resistant
* Oil resistant and abrasion resistance jacket
* Premium flexibility

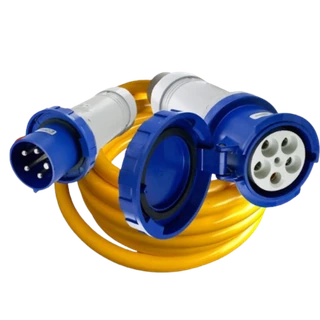

* Yellow cable is:
- STOW #2/5 wire
- UL/CSA approval
- Very good appearance with the yellow color
- Temperature range -40°C to 105°C (221F)
- External diameter 1.44" or 1-7/16" or 36.5mm

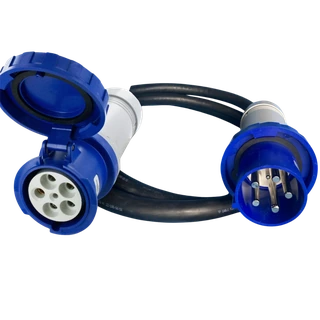

* Black cable is:
- SOOW #2/5 wire
- National Electric Code 501.140 Class I Div. 2
- CSA Standard 22.2 No. 49
- Temperature range -40°C to 90°C (194F)
- Voltage rating is set at 600V
- External diameter 1.39" or 35.3mm
MALE PLUG and FEMALE CONNECTOR
* Standard Pin & Sleeve IEC-60309-1 and 60309-2, UL 1682
* Rated current 100A
* Rated voltage 250v (120/208v)
* 4 poles, 5 wires
* Watertight IP67
