Marine Frequency and Voltage Converter 6KW to 25KW with Remote Monitoring System, Input any between 190 and 500VAC, 50 or 60Hz, Output 220-230VAC 50Hz or Single phase 120/240VAC 60Hz MOD 501XX

WE CAN RESOLVE YOUR SHORE POWER CONNECTION PROBLEM

Is the voltage and frequency your yacht needs unavailable where you're going or docking ?

We have your solution:

• The "AC MARINE POWER CONVERTERS" are electrical conversion equipment that can change or adjust the electrical frequency and voltage available anywhere, to obtain the voltage and frequency you need on board.
• Our equipment supplies the required output voltage stably, without fluctuations or ups and downs.
• In addition to its primary function of changing or adjusting the frequency and voltage to the values required for on-board use, the converter has a very important secondary function: filtering out disturbances and interference from the grid at the same time, allowing for an excellent stabilized output voltage and providing a safe and clean power supply for all equipment.

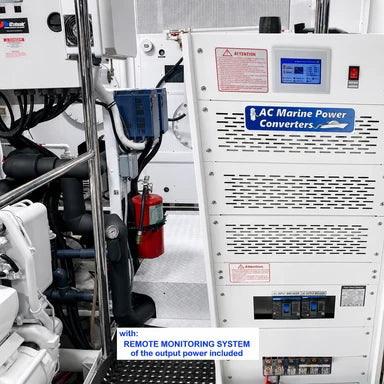

• The Remote Monitoring System included with every "AC MARINE POWER CONVERTERS" is an unparalleled advantage that you won't find with any other converter brand. This allows you to remotely monitor the output voltage, current, frequency, and other features, wherever you are, via a Wi-Fi connection and a smartphone app.
• The "AC MARINE POWER CONVERTERS" accept any frequency of 60 or 50 Hz (American or European power), any voltage from 190 VAC to 500 VAC, and any input waveform, whether single-phase or three-phase, and convert the power to the requested voltage, phase, and frequency.
• These frequency converters are the product of over 20 years of experience in electrical conversion engineering and, as a result, can supply the correct power in a stable and reliable manner when connected to the most common voltages: between 190 V and 500 VAC, whether single-phase or three-phase, 60 Hz or 50 Hz.
• The "AC MARINE POWER CONVERTERS" feature an automatic multi-voltage input system, which you do not need to change or adjust. Simply connect the plug to the power pedestal; the converter self-adjusts and begins operating in just a few seconds.
• All three-phase converters can be connected to and powered from single-phase or three-phase systems using the same power cable.
• Power can be supplied even if the requested phase is unavailable. This is a unique feature that only these frequency converters offer.
• In addition, if that weren't enough, the "AC MARINE POWER CONVERTERS" include:

1. - an isolation transformer to provide galvanic isolation, separating the vessel's electrical system from the dock's electrical system and thus preventing electrolytic corrosion

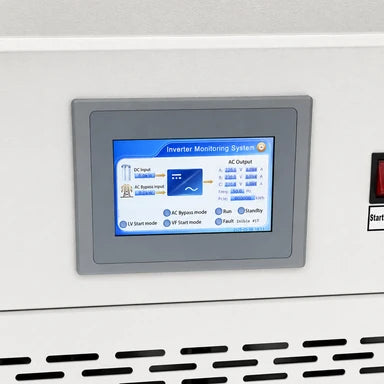

2. - a screen displaying the output's electrical parameters
3. - a historical event log, allowing for easy identification of any abnormalities
4. - protection against overtemperature, overload, and overvoltage
5. - a 1 YEAR warranty.

TECH DATA:

AC INPUT

• Voltage Range:        190-500 VAC                                             Automatic_Adjustment
• Phase:                      Single or 3-phase
• Frequency:               American 60 Hz or                                  European 50 Hz                                         (range: 45 to 65 Hz)                               Automatic Adjustment

AC OUTPUT

• Rated Output Power:   6 to 25 KW                                          - Selectable -
• Output Waveform:       Pure Sine Wave
• Output Frequency:       European 50 Hz or                                      American 60 Hz                                          - Selectable -
• Nominal Voltage:        220-230 VAC adj or                                        120/240 VAC ±3%
• Phase:                           1-Phase
• Rated Current (A):        100 A @ 25KW
• Overload capacity:       120%, 20 seconds
• Power Factor (PF):        >0.99
• Inverter Efficiency:        >90%
• Display:                          LCD+LED
• Voltage Accuracy:     Balanced Load ≤1%,                                Unbalanced Load ≤5%
• Permissible imbalance: 30% max in load
• Waveform distortion:   THD ≤2% Linear                                    ≤3% Non-linear load
• Dynamic response:      0 to 100% load 5%,                                 ≤50 ms (0-100% load)
• Operating mode:          Continuous                                        operation

ISOLATION MODE

• Electrical insulation:    2000 VAC, 1 min
• Output:                          High-efficiency                                  isolation transformer

BUILT-IN PROTECTIONS

• Input undervoltage and overvoltage
• Output overcurrent, short circuit, and overheating
• Short circuit protection: No automatic recovery for safety

EXTERNAL PROTECTIONS INCLUDED

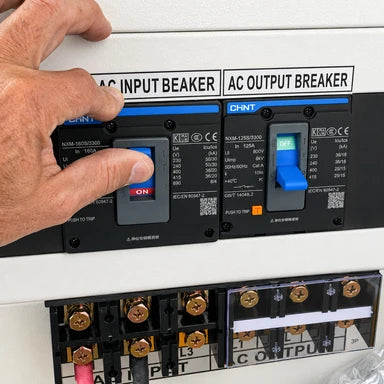

• Protective breaker for the power input
• Protective breaker on the output to the load

COOLING METHOD

• Fan-forced cooling with automatic start/stop control to reduce noise when not needed

WORKING ENVIRONMENT

• Noise (1 meter):              ≤80 dB
• Protection class:             IP20 (indoor)
• Working altitude (m):     ≤3000 m
• Working ambient temp:  -20 ~ +50 ℃
• Relative humidity:           0-90%,                                         non-condensing
