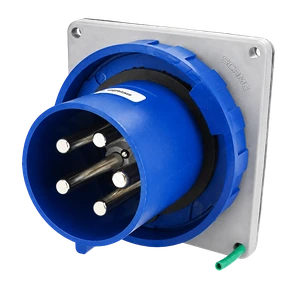

Inlet or Male to Wall Mount, Boat side, 208V 100A 4P 5W IP67, SCM5100B9W

NORMAL USED to CONNECTIONS with 208V/120V, 3-phase with Neutral
EQUIVALENT TO:

Hubbell HBL5100B9W
Bryant 5100B9W and
Menneke ME5100B9W

MAKES COUPLING WITH:

Connector SCM5100C9W

TECH  DATA:

Plug & Connector: .. Commercial series                                    PIN & SLEEVE Series
Mounting version: …... PORTABLE
Rated current: …..….... 100A
Poles: …………….............. 4P 5W
Hour position: ….…....... 9h
Rated voltage: ............... 250V
Colour: ................................ BLUE
Material: ............................ THERMOPLASTIC
Protection degree: ....... Watertight
Protection degree IP: .. IP67
Types available outlets: STRAIGHT
Cable outlet: ..................... CABLE GLAND

STANDARDS AND LAWSUL 1682 [American Standard] Plugs, Receptacles, and Cable Connectors of the Pin and Sleeve Type and MIL-C-5756C: 600-volt heavy duty, portable, power, single and multiconductor, electrical cable for severe flexing service IEC 60309-1 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements IEC 60309-2 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories UL 486E [American Standard] Equipment wiring terminals for use with aluminum and/or copper conductors CSA C22.2 No. 182.1 (1988) [Canadian Standard] Industrial Locking Type, Special Use Attachment Plugs, Receptacles, and Connectors, Wiring Products CSA C22.2 No. 65-93 [Canadian Standard] Wire connectors wiring products DIRECTIVE LOW VOLTAGE 2014/35/UE [European Directives] Low Voltage Directive
